Item

　Specification

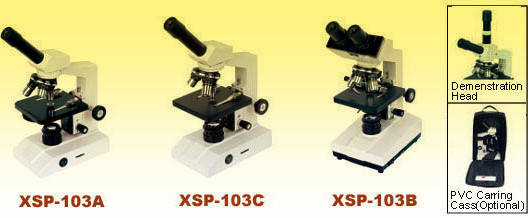

XSP-103A

XSP-103C

XSP-103B

Viewing Head

Monocular Head, at 45°, 360° Rotatable

*

Sliding Binocular Head, at 45°, 360°Rotatable

Eyepiece

Wide Field Eyepiece WF10X

Objective

Achromatic 4X,10X,40X

Achromatic 4X,10X,40X,100X

Nosepiece

Triple Nosepiece

Quadruple Nosepiece

Stage

Plain Stage with Slide Clips, 120X130mm

With Attachable Mechanical Stage 110X120mm/60X30mm

Condenser

Single Lens with Disc Diaphragm

Abbe NA1.25 with Iris Diaphragm and Filter

Illumination

Built-in Illumination, Incandescent Lamp 110V or 220V/15W, brightness Adjustable

Built-in Illumination, Halogen Lamp 110V or 220V/6V20W, brightness Adjustable
