Item

 Specification

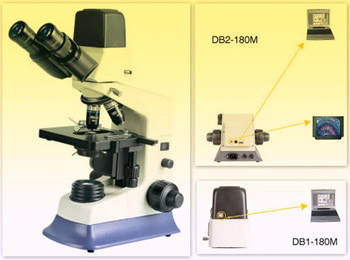

DB1-180M

DB2-180M

Viewing Head

Compensation Free Binocular Head, inclined at 30°, interpupillary distance 55-75mm

*

Camera System

CMOS Chip, 300,000 Pixel, USB1.0 Output

CCD Digital Camera, 400,000 pixel, RCA, S-Vide, USB2.0 output

Eyepiece

Wide Field Eyepiece EX10x/20

Objective

Semi-plan Achromatic Objective 4x,10x,40x,100x

Nosepiece

Backward Quadruple Nosepiece

Stage

Double Layers Mechanical Stage 140X140mm/75X50mm

Focusing

Coaxial Coarse & Fine Focus Adjustment

Condenser

NA1.25 Abbe Condenser with iris Diaphragm and Filter, Rack & pinion Adjustment

Illumination

Halogen Lamp 6V/20W (12V/20W for DB2-180), Brightness Adjustable

Software

Advanced Micro-image Processing Software
